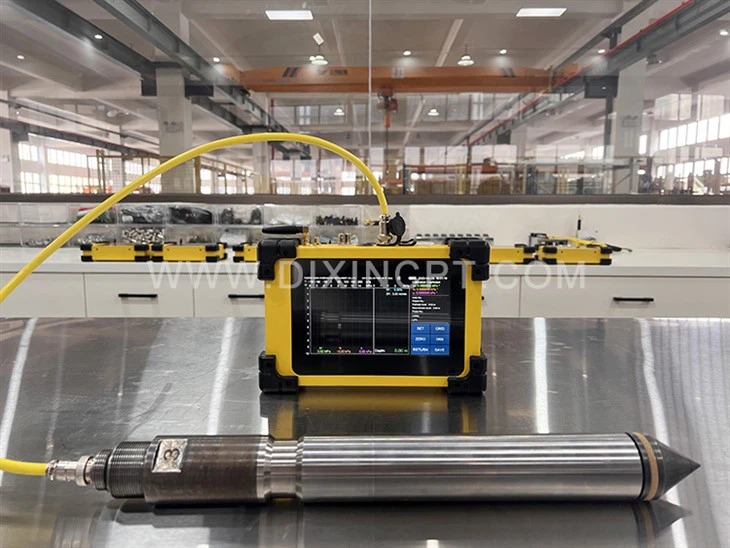

CPT Data Acquisition Instrument

Features:

1. This machine is available in both Chinese and English versions. It adopts an all-metal casing for anti-jamming. It uses a cortex-A dual-core processor, 64M memory, 16MFLASH memory, and an externally expanded 32G memory card. It has a 7-inch display screen, friendly interface, and easy operation.

2. The display screen is a TFT color LCD screen with a resolution of 1024*600, and the window area is 155×85mm².

3. Three differential input channels, the measurement range of each channel is: -40mV～+40mV.

4. 24-bit ADC, A/D conversion resolution: ±1/1000000.

5. Linearity error of instrument measurement system: ≤±0.03%.

6. Sampling time: 50ms.

7. Depth sampling spacing: 10cm.

8. Time sampling interval: 1s ~ 2s.

9. External probe specifications: single and double bridge static penetration probes, hole pressure static probes and cross plate probes of various specifications.

10. The maximum recording depth of a single hole: 150.0m.

11. Data storage capacity in the machine: up to 800 hole data can be stored.

12. Drawing size: A4.

13. Instrument battery: lithium ion battery 8.4V, capacity greater than 8000mA

14. Power adapter: input AC 220V 50hz, output DC 12V2A

15. Optional GPS and WIFI.

16. Support multiple exploration software formats, and can be directly exported by U disk.

15. Machine power consumption: <5W

16. Working temperature range: 0℃～40℃.

17. Instrument volume: 242×163×68mm³.

18. Instrument mass: 2.35kg.
