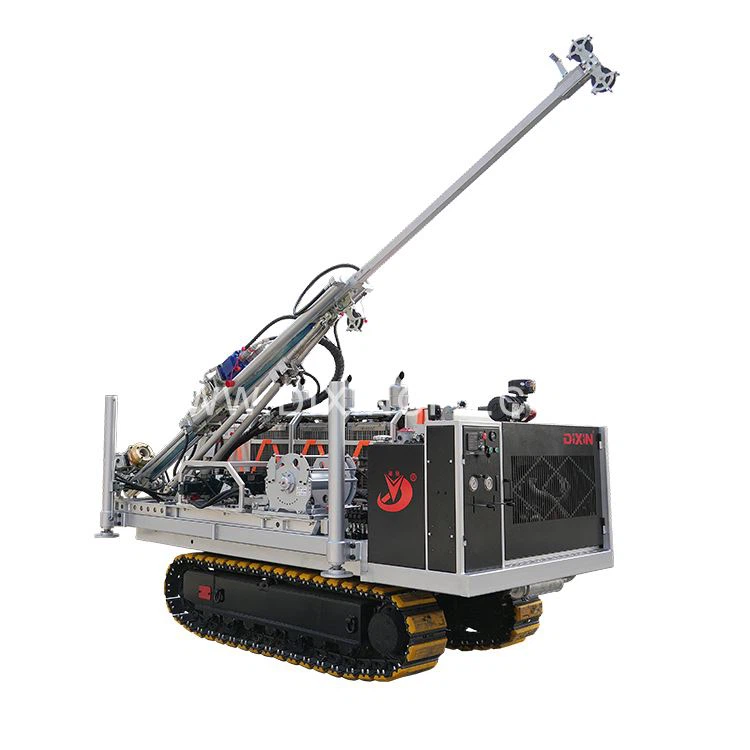

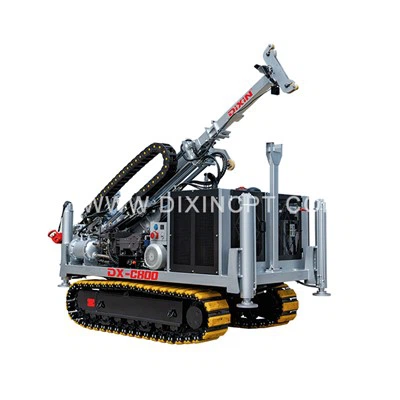

DX-800 Diamond Core Drilling Rig

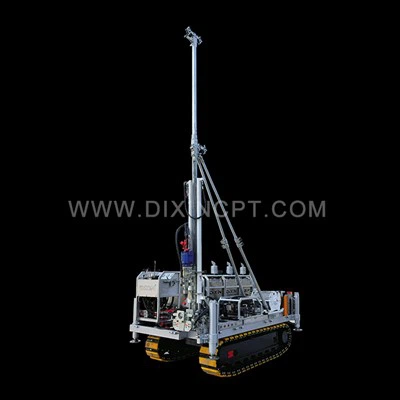

This product is designed for hard-to-reach areas, complex formations and 500-800M medium-deep hole drilling projects.It has strong power, reliable quality and excellent workmanship.Combined with a series of formulated mud, it can quickly penetrate even extremely broken formations. It can be combined with a tracked self-propelled vehicle to turns into a tracked walking drilling rig in a second.

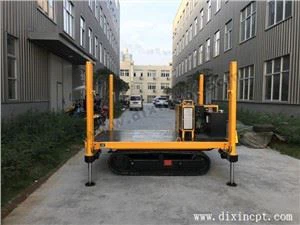

The rig platform can be hydraulically lifted and lowered, and the chassis can be used as a transport truck.
The modular advantages of the drilling rig remains unchanged.https://www.dixincpt.com/diamond-core-drilling-rig/dx-800-man-portable-diamond-drilling-rig.html
In case of difficulty in entering areas with tracks, each module can be quickly and conveniently disassembled for subsequent transportation.
4 long stroke hydraulic support legs
Modular drilling rig capable of self loading and unloading
No need for manual handling, reducing labor intensity
No need to split the various modules of the drilling rig
One time handling, saving time and effort
Reduce the failure rate of rigs during dismounting
Dual speed walking with remote control capability
Rubber tracks and steel aluminum strips are interchangeable
Effectively reduce the workload of workers
Can be used as a tracked vehicle for transportation
Can transport 6 tons of goods at once
Can climb steep slopes up to 50 degrees
No need to build specialized roads,No damage to the surrounding environment and forest lawns. Specially suitable for completing core drilling work with high quality, efficiency, and low cost in various harsh environments.
1.Convenient transfer: The design is usually light and has foldable or detachable parts, making it easier to transport and move.
2.Easy to disassemble: The structure is modular, easy to disassemble and assemble, and convenient for maintenance and transportation.
3.Remote control walking: Equipped with a remote control system, it is flexible to operate and can move freely in complex terrain, enhancing the convenience of use.
Product Parameters
| Drill Pipe | ||
|
Drill Pipe type |
HTW/NTW/BTW |
|
|
Drill Pipe Length |
1.5m |
|
|
Drilling depth Capability |
400/800/1000m |
|
|
Drilling Diameter |
96/76 /60mm |
|
|
Coring Diameter |
71/56/42mm |
|
| Hydraulic System | ||
| Engine Power |
KUBOTA V1 505-T Boxer Turbo Desel Engine 3x33kw/3000rpm = 99kw |
|
| Maximun Pressure | 21MPa | |
| Maximun Flowrate | 210L/min | |
| Top Drive Rotation Head | ||
| Drilling Angle |
45°-90°(standard) 0°-90°(custom made) |
|
| Maximun Torque | 920N·m(standard) | |
| Rotation Speed | 1200rpm(standard) | |
| Feed Travel | 1.83m | |
| Winch | ||
| Average Speed | 150m/min | |
| Pulling Force | 7.5kN | |
| Wire Rope Diameter | 6mm | |
| Rope Capacity | 1000m | |
| Mud Pump | ||
| Maximum Flow Rate | 100L/min | |
| Maximun Pressure | 7MPa | |
| Size and Weight | ||
| Platform Area | 4m*4m*5.3m | |
| Module Quantity | 12PCS | |
| Heaviest Module | 180kg | |
| Gross Weight | 1500kg | |
| Crawler | ||
| Walking Speed | 5 km/h | |
| Load Capacity | 6.0 tons | |
| Remote Control Effective Distance | ≦100m | |
The product introduces the mature portable fully hydraulic drilling rig and diamond wire line coring process in the field of geosurveying. Through the innovation of work method, equipment and tools, the product is modularized and lightweight design, with high exploration quality and safety, which can maximize the cost saving and reduce the damage to the environment . It can be applied to mineral geological exploration and engineering geological exploration.
Eight application scenarios for geological and mineral exploration：
● Difficult-to-access areas
● Drilling instead of trenching
● Trenching and downhole construction
● Construction in high-altitude and high-cold areas
● Deep-hole construction
● Complex formation construction
● High platform efficiency construction
● And horizontal drilling construction
Eight application scenarios of engineering geological survey：
● Pile foundation coring
● Railroad survey
● Highway survey
● Bridge survey
● Tunnel advance prediction survey
● Water conservancy and hydropower survey
● Urban rail transit survey
● Urban underground space survey
