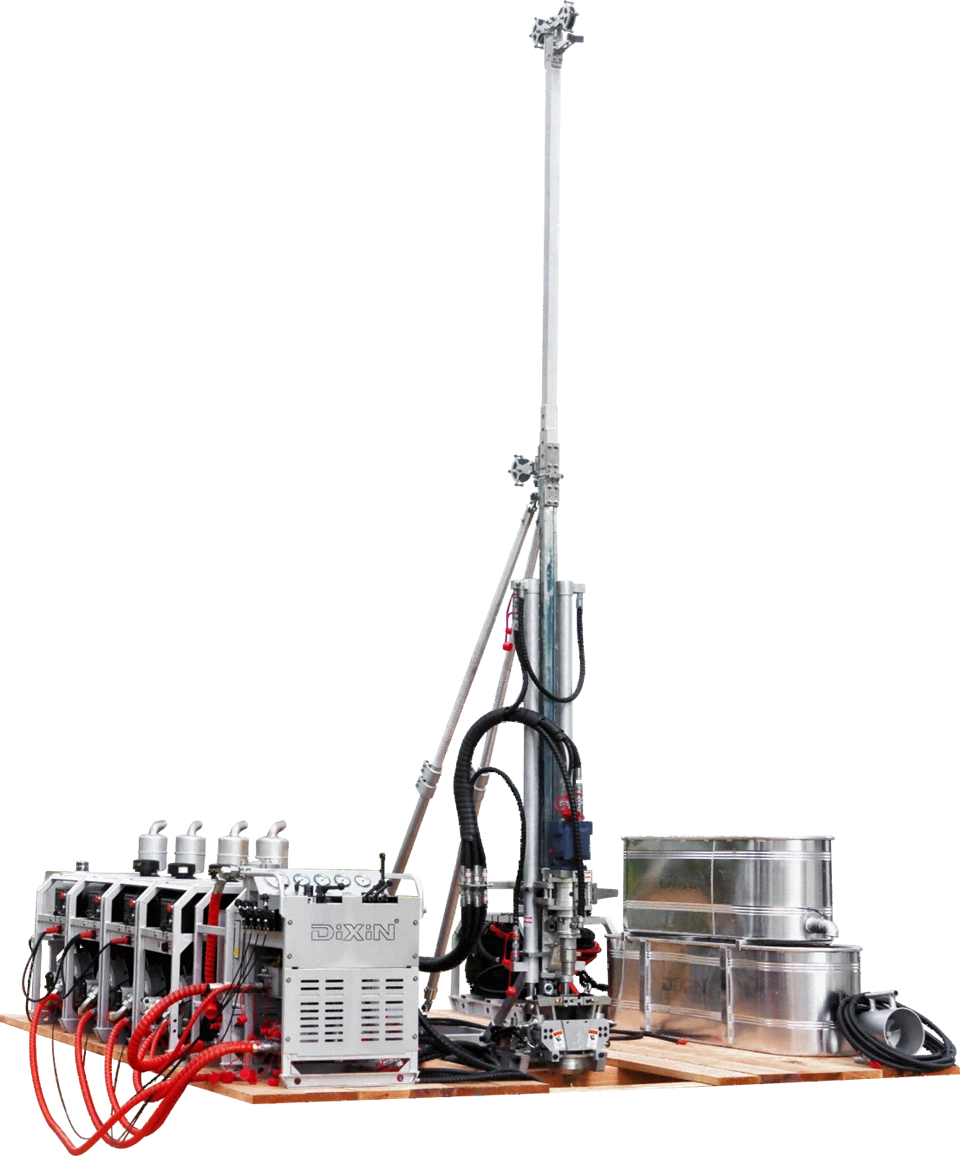

DX-1000 Man Portable Diamond Drilling Rig
This product is designed for hard-to-reach areas, complex formations and 1000-1300M medium-deep hole drilling projects.
· Lightweight design, modular structure, with the heaviest module weighing less than 180kg
· Fully hydraulic transmission, stable drilling, low vibration
· Thin walled diamond rope core extraction drilling technology: high core extraction speed and rate, low labor intensity for workers
No need to build specialized roads; No damage to the surrounding environment and forest lawns; Can be manually transported, tracked; Applied in all terrains and scenarios; Specially suitable for completing core drilling work with high quality, efficiency, and low cost in various harsh environments.

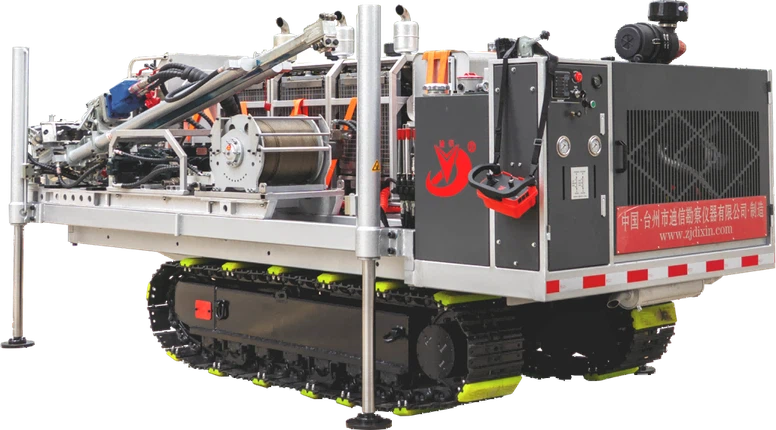

Upgrade and Installation: Remote Control Walking Track Chassis (Hydraulic Lifting)
Product Parameters
|
Dynamical System |
|
|
Engine Type |
KUBOTA V1505-T |
|
Engine Power |
4*33kw/3000rpm=132kw |
|
Maximum Pressure |
3000RPM |
|
Diesel Tank Capacity |
90L |
|
Feed System |
|
|
Feed Travel |
1850 mm |
|
Drilling Angle |
0°-90° |
|
Maximum Lifting Force |
13T |
|
Maximum Propulsiong Force |
9T |
|
Top Drive Rotation Head |
|
|
Rotation Speed |
Max 2000 rpm |
|
Rotation Torque |
Max 1325 N·m |
|
Mud Pump |
|
|
Mud Pump |
Three cylinder plunger high-pressure pump |
|
Drive Form |
Hydraulic motor drive |
|
Flow Rate and Pressure (Four Gears Adjustable) |
160L/min 2.7 MPa 107L/min 4 MPa 67L/min 6.5 MPa 44L/min 10 MPa |
|
Drill Pipe |
|
|
Drill Pipe Type |
HTW / NTW / BTW |
|
Drill Depth Capacity |
600m / 1000m / 1300m |
|
Drill Pipe Length |
1500 mm |
|
Drill Pipe Diameter |
73.1 / 91.2 / 108 mm |
|
Hole Diameter |
96 / 76 / 60 mm |
|
Core Diameter |
71 / 56 / 42 mm |
|
Drilling Angle |
0° ~ 90° |
|
Winch |
|
|
Average Speed |
150m/min |
|
Pulling Force |
7.5 kN |
|
Wire Rope Diameter |
6mm |
|
Size and Weight |
|
|
Platform Area |
5m*5m*5.3m |
|
Module Quantity |
13 PCS |
|
Heaviest Module |
180 kg |
|
Gross |
1680 kg |
|
Crawler |
|
|
Load Capacity |
8 tons |
|
Walking Speed |
0-5km/h |
|
Gradeability |
Max 50° |
|
Remote control effective distance |
≤80 m |
