Description:

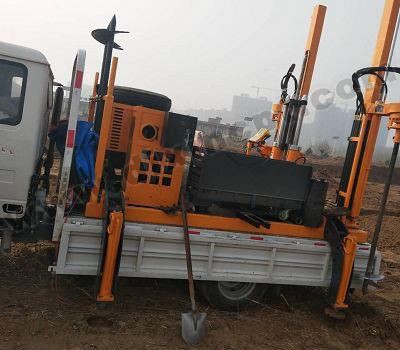

DYLC-Q20 Crawler CPT equipment is an economical and complete cpt platform, which can be easily installed by users on various carrier trucks, then converted into car-type cpt equipment, and most importantly, the carrier trucks do not need to be modified (in accordance with relevant regulations).

It has top quality of full hydraulic engineering crawler chassis, which engine and hydraulic valve parts and other components are from famous enterprises at domestic and abroad to ensure the stable and reliable performance of the equipment and timely after-sales service. Advanced hydraulic technology, using split-type combined multi-way reversing valve, has such good qualities,as compact structure, small size, convenient installation and maintenance, low pressure loss, good overload characteristics of overflow valve.

This cpt equipment can be used more than one machine. It is not only the ideal equipment for cone penetration testing. With accessories can be extended for in-situ soil test, such as CPTU, PMT, DMT, VST, WVT.

Max feature: Installed on various carrier trucks.

It has the Geotechnical engineering platform to support (patent no:201520460081.3) and rotary full hydraulic self-propelled anchorage (patent no.: 201220081488.1) and core tube and drill bit (patent no.: 201220081492.8) to open holes on hard road which is efficient and durable, simple structure, convenient and fast.

Main Technical Specification:

Engine: Single cylinder 1115 electric start diesel engine  horizontal four stroke water cooling (other type diesel engine is optional)

Rated power - speed: 16.2KW-2200r/min

CPT Hydraulic cylinder device:Rated penetration force 100~200KN; Rated extraction force 130~230KN; 550mm or 1150 mm stroke for fast rise and direct casing.

Probe tube form: Mechanical probe holder or pad plug-in

Anchorage: Double force cpt equipment anchoring device

Supporting platform and horizontal form: 4 hydraulic legs, 450mm stroke

Max transport profile size: 2800×1700×1600 (L×W×H）mm

Weight: 2500kg

Hydraulic tank capacity (L): 170

Working environment temperature: –25 C°-45C°

Ground anchor form: Single or multi-leaf anchor

Anchor diameter (mm): 300~400

Matching probe: 10cm² or 15cm² of Single and double bridge cone probe, electric vane probe, pore water pressure head (all European and American manufacturers can match).

Measuring instrument: Cone penetration data automatic acquisition instrument (all European and American international manufacturers can match).

Probe specifications (mm): integral high-strength joint-less probe Φ32~Φ42 (optional).
