Portable Drilling Rig
This product is designed for hard-to-reach areas, complex formations and 500-800M medium-deep hole drilling projects.It has strong power, reliable quality and excellent workmanship.Combined with a series of formulated mud, it can quickly penetrate even extremely broken formations. It can be combined with a tracked self-propelled vehicle to turns into a tracked walking drilling rig in a second.
DX Series Portable Fully Hydraulic Drilling Rig Features
Modular lightweight design, the heaviest module is less than 180kg, fast disassembly and installation, can be manually transported;
Mast type drilling frame structure, no need for drilling tower, can be drilled at any angle from 45° to 90°;
Top-driven power head, 1.83m long stroke guide rail, cylinder propulsion, no need to repeatedly inverted rods, good guidance and orientation;
Small footprint, no foundation work required, environmentally friendly.
Strong operability, hydraulic automatic release, paired with Italian brand DNP quick connector, low labor intensity, and long service life;
Infinite speed regulation, capable of driving at high speeds, stable drilling process, and low vibration;
Real-time control of the situation in the hole, pressure-limited protection, and safety;
Easy maintenance.
High drilling speed and bit life, high utilization of pure drilling time, high core take rate,high adoption rate of rock cores;
Low labor intensity for workers and low drilling costs;
Rock and ore cores of good quality, clear structure, good integrity, and high purity.
Product Parameters
|
Technical Parameter |
|||
|
Drill Pipe Model |
HTW/NTW/BTW |
Drilling Rig Power |
KUBOTA V1 505-T Boxer Turbo Desel Engine 3x33kw/3000rpm = 99kw |
|
Drill Pipe Length |
1.5m |
Machine Area |
4mx4m×5.3m |
|
Drilling Capability |
350/600/860m |
Number of Modules |
12PCS |
|
Drilling Diameter |
96/75.7 /60mm |
Heaviest Module |
180kg |
|
Coring Diameter |
71/56/42mm |
Total Weight |
1500kg |
Application Areas
The product introduces the mature portable fully hydraulic drilling rig and diamond wire line coring process in the field of geosurveying, and through the innovation of work method, equipment and tools, the product is modularized and lightweight design, with high exploration quality and safety, which can maximize the cost saving and reduce the damage to the environment, and it can be applied to mineral geological exploration and engineering geological exploration.
Eight application scenarios for geological and mineral exploration: difficult-to-access areas, drilling instead of trenching, trenching and downhole construction, construction in high-altitude and high-cold areas, deep-hole construction, complex formation construction, high platform efficiency construction, and horizontal drilling construction.
Eight application scenarios of engineering geological survey: pile foundation coring, railroad survey, highway survey, bridge survey, tunnel advance prediction survey, water conservancy and hydropower survey, urban rail transit survey, urban underground space survey.

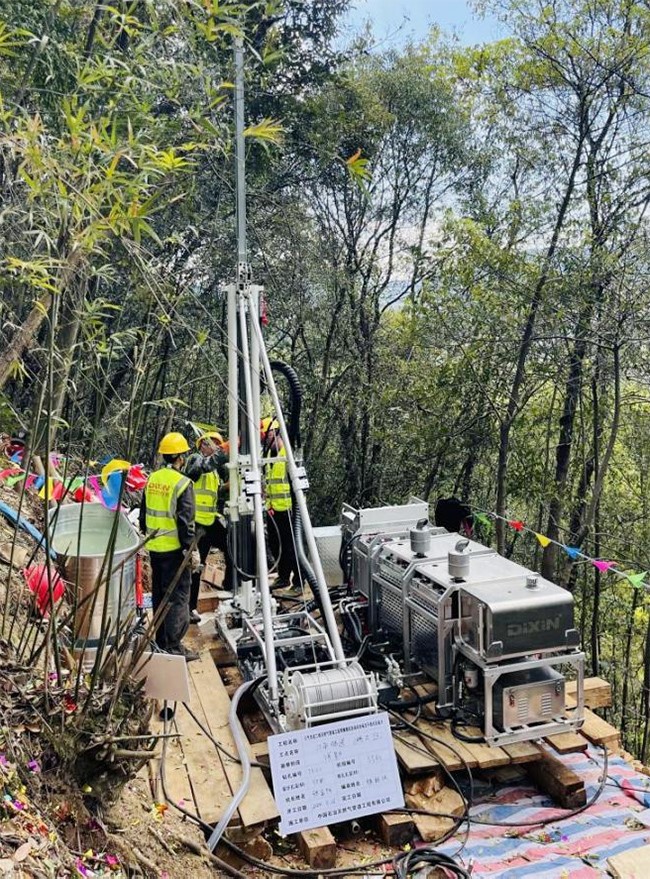

Engineering Cases
